External App Integration

Overview

Use the External App Integration APIs to connect your application to the gIQ Marketplace.

This guide is for third-party developers who want to integrate their application with gIQ, allow users to launch it from the Marketplace, run a task and upload the output file back to gIQ.

---

What you can do with this integration

With the External App Integration APIs, your application can:

Authenticate and access user context

• Use an identity token provided by gIQ
  → Understand authentication and identity tokens

• Renew an identity token for long-running sessions
  → Renew identity tokens using the API Reference

• Retrieve user details associated with the token
  → Retrieve user details using the API Reference

Execute and manage operations

• Create an operation to initiate processing
  → Create operations using the API Reference

• Check the status of an operation
  → Check operation status using the API Reference

Upload and return results

• Upload the result of the operation back to gIQ
  → Upload files using the API Reference

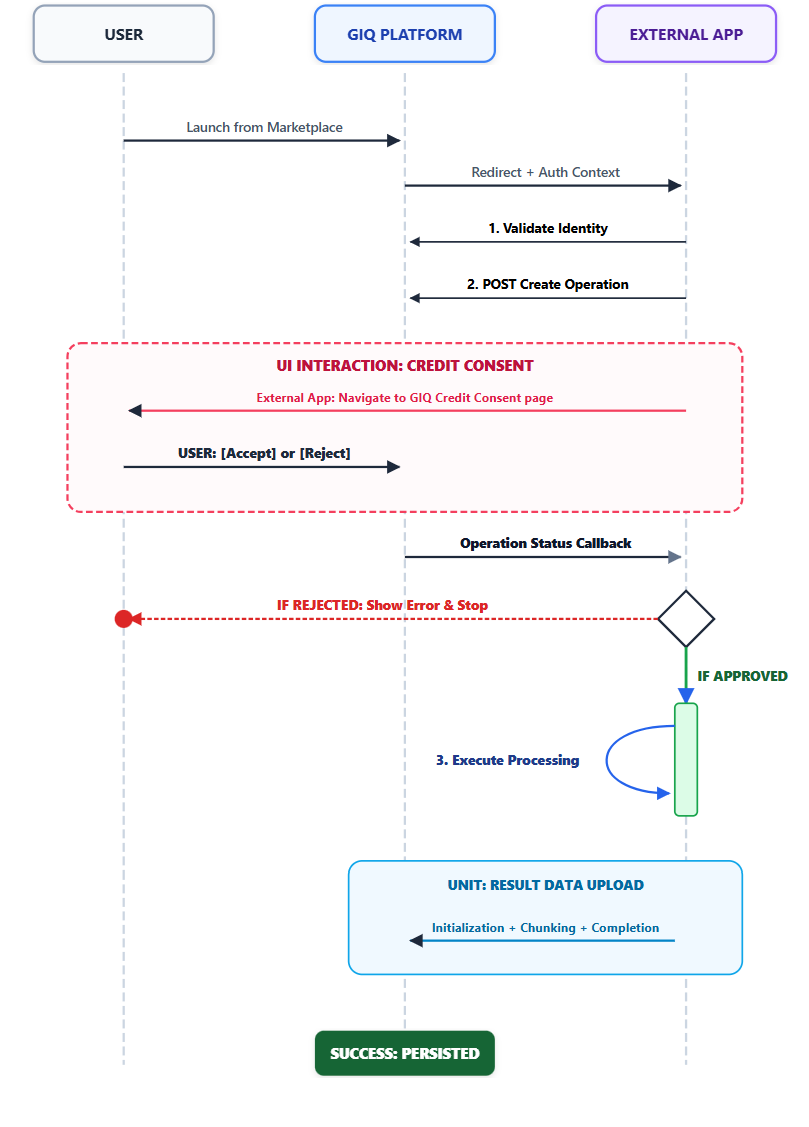

Refer to the following graphic to understand the workflow:

---

Base URL

All endpoints are relative to:

/public/external-app

---

Authentication

Before you start, do the following:

info

Contact gIQ Support at support@giq.ae to set up API integration. You will receive the required credentials, including your API key, which must be used in all API requests.

• An API key (X-API-KEY)
  → Get and manage API keys

• An identity token provided by gIQ during integration
  → Understand identity tokens and authentication flow

• Required permissions to access the External App APIs
  → Authentication and access control

Use the X-API-KEY header to authenticate API requests.

X-API-KEY: API_KEY

How the integration flow works

A typical integration follows this sequence:

1. A user selects your app in the gIQ Marketplace
2. gIQ sends an identity token to your application
3. Your application gets the user details
4. Your application creates an operation
5. gIQ handles approval in the platform
6. Your application checks the operation status
7. If approved, your application runs the task
8. Your application uploads the output file to gIQ

Who does what

The following model clarifies which parts of the workflow are handled by the gIQ platform and which are handled by your application:

• The gIQ platform is responsible for:

  • Generating the identity token
  • Managing user approval
  • Maintaining operation status

• Your application is responsible for:

  • Processing the task
  • Checking operation status repeatedly
  • Uploading the result

---

Operation Lifecycle

An operation can have the following states:

• REQUESTED — Operation created and awaiting user approval or rejection
• APPROVED — User approved the operation; processing can begin
• REJECTED — User rejected the operation; do not proceed
• EXPIRED — Operation expired because no action was taken within the configured time window

Operation expiry behavior

If an operation remains in the REQUESTED state and no action is taken by the user, the operation automatically expires after 30 minutes.

Once expired:

• The operation status changes to EXPIRED
• The operation is no longer valid for processing
• Your application must not proceed with execution or upload results for that operation

Treat EXPIRED as a final state. DO NOT continue the workflow.

Handling expired operations

If an operation reaches the EXPIRED state:

• Stop checking the Operation Status endpoint once the operation reaches a final state
• Do not start or continue processing
• Do not initiate or perform any upload
• Treat the operation as invalid for further use

If your workflow requires retry:

• Create a new operation
• Restart the workflow using the new operationId

---

API summary

Step	Action	Endpoint
1	Renew identity token	POST /token/{token}/renew
2	Get user details	GET /user/{token}/detail
3	Create operation	POST /operation/{token}
4	Get operation status	GET /operation/{token}
5	Initiate multipart upload	POST /file/{token}/upload/initiate
6	Upload file chunks	POST /file/{token}/upload/chunk
7	Complete multipart upload	POST /file/{token}/upload/complete

---

Checking operation status

Check the Operation Status endpoint repeatedly until the operation reaches a final state.

Recommended approach:

• Check the operation status every 2–5 seconds
• Stop when status is APPROVED, REJECTED, or EXPIRED

---

Upload rules

• Use the same uploadId and key for all chunks in the same upload
• Upload chunks in order
• Complete the upload only after all chunks are uploaded
• Start the upload only after the operation is approved

---

Example Workflow

The following example shows how your application can implement the integration flow:

1. Receive the identity token from gIQ platform

2. Retrieve user details
   → GET /user/{token}/detail

3. Create an operation
   → POST /operation/{token}
   → Store the returned operationId (used to track the operation status)

4. Check operation status
   → GET /operation/{token}?operationId={operationId}

   Repeat until the status is one of:

   • APPROVED → proceed
   • REJECTED → stop
   • EXPIRED → stop

5. If status is APPROVED:

   • Start processing the task
   • Initiate upload
     → POST /file/{token}/upload/initiate
   • Upload file chunks
     → POST /file/{token}/upload/chunk
   • Complete upload
     → POST /file/{token}/upload/complete

6. If status is REJECTED or EXPIRED:

   • Stop processing
   • Do not upload any results
   • Optionally create a new operation to retry

---

Common errors

Status code	Meaning
400	A required value is missing, malformed, or invalid.
403	Authentication failed, permission is missing, or the token is revoked or expired.
404	The referenced token, operation, or upload session was not found.
500	The request failed because of a server-side issue.

---

Implementation checklist

• Use the token provided for the current session
• Create an operation before starting processing
• Check operation status before uploading results
• Upload files using multipart upload (uploading the file in parts)
• Complete the upload only after all chunks are uploaded

---

Integration Guidelines

The following guidelines define how your application must behave during the External App Integration flow.

Do not start processing before approval

After your application creates an operation, gIQ handles the approval flow internally. Your application must wait until the Operation Status endpoint returns APPROVED before starting any processing.

If your application starts work while the operation is still REQUESTED, the user may not yet have granted approval. If the operation later becomes REJECTED, any work performed before approval is considered invalid for that request.

Expected behavior

• Create the operation
• Check the Operation Status endpoint repeatedly until it reaches a final state
• Start processing only when the status is APPROVED

Do not upload files for rejected operations

A rejected operation means the requested action was not approved. If the Operation Status endpoint returns REJECTED, your application must stop the workflow and must not upload any output file for that operation.

Uploading files for a rejected operation can create inconsistent system behavior, because gIQ has already determined that the requested action should not proceed.

Expected behavior

• Stop processing when the status is REJECTED
• Do not call the upload initiation endpoint
• Do not upload chunks
• Do not call the complete upload endpoint

Do not reuse tokens across sessions

It is recommended that you treat each token as a temporary value that represents a specific external app session. DO NOT store tokens for reuse across different users, different sessions, or later workflows.

If you reuse a token across sessions, you may face the following issues if the token has expired, been revoked, or no longer matches the current operation:

• Authorization issues
• Incorrect user context
• Failed requests
